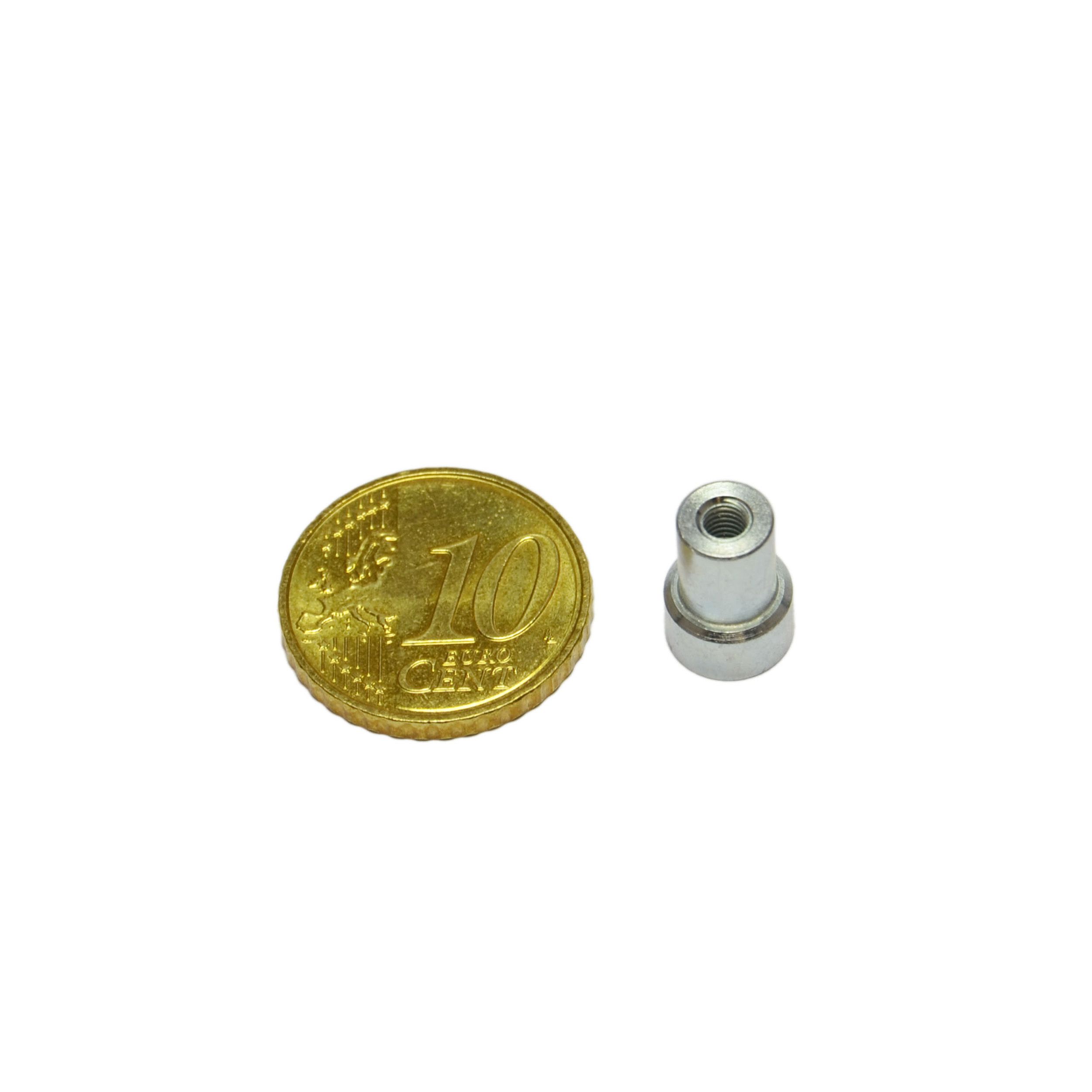

SmCo pot magnets with socket screw 8 mm

MSXX000763 4068243064445

/Magnets/Pot magnets/

Item number MSXX000763

Description

High-quality pot magnets with socket screw and high adhesive force, for screwing in hooks, eyelets etc.

64,90 €incl. tax 54,56 €plus tax

excl. shipping costs

Ready for dispatch

Delivery in 7 working days

Minimum order quantity 22 Pieces

Due to the packaging sizes, this item can only be ordered in the specified units: 22

Pieces

Product seen cheaper
Print Page

Prices
Price per 1 Piece
from 22
2,95 €
from 50
2,52 €
from 100
2,11 €
from 250
1,69 €

plus tax

Request for customised quotation

PayPal payment possible
Ready for dispatch in 24h
Large quantities available immediately

Details

An SmCo pot magnet is a magnetic system made of samarium-cobalt (SmCo). This is a cobalt alloy of the rare earth metal samarium. The magnet is embedded in a steel or stainless steel pot, which strengthens the magnetic force of the magnet and protects it from corrosion. These magnets are characterised by a high temperature resistance, a high coercivity and a high remanence. Due to their high content of cobalt, they are particularly durable and powerful, but also more expensive than magnetic systems with other magnetic materials.

Data sheets & downloads

Specification

Outer diameter: 8 mm
Colour: silver
Overall height: 11,5 mm
Thread: M3
Holding force magnet: 1,2 kg
Height: 4,5 mm
Material: SmCo, steel
Surface: zinc-plated
Shaft diameter: 6 mm
Temperature resistance to: 200
Temperature resistance from: 200
Pot height: 4,5 mm
Description: Pot magnet with screw socket, SmCo
Variant: Steel case
Note: Adhesive force at room temperature determined on a 10 mm thick plate in polished steel (S235JR according to DIN 10 025) (1kg~10N).

EAN: 4068243064445

Product safety

Safety information & warnings

|Danger: strong magnetic field - may affect pacemakers, medical devices and other electronic devices and credit cards. Keep at distance. |Warning: Risk of crushing - strong magnetic force. Handle with care. Not suitable for children. |Danger: Choking hazard - Magnets can cause life-threatening complications if swallowed. Keep out of reach of babies and children.
