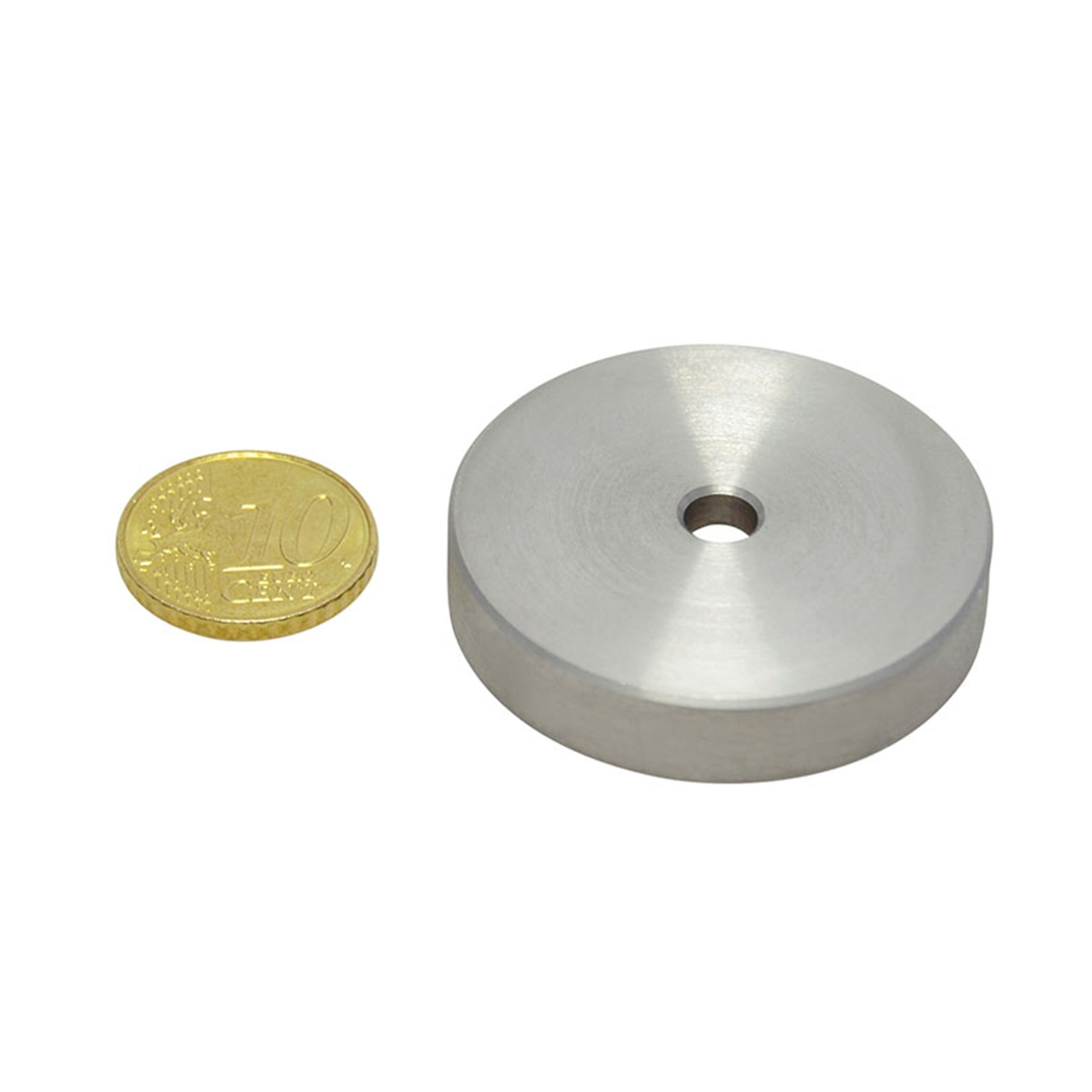

SmCo pot magnets with cylinder bore, stainless steel case 40 mm

MSXX000791 4068243064728

/Magnets/Pot magnets/

Item number MSXX000791

Description

High-quality pot magnets with cylindrical bore, for fastening by means of screws without counterbore

66,34 €incl. tax 55,74 €plus tax

excl. shipping costs

Ready for dispatch

Delivery in 7 working days

Minimum order quantity 2 Pieces

Due to the packaging sizes, this item can only be ordered in the specified units: 2

Pieces

Product seen cheaper
Print Page

Prices
Price per 1 Piece
from 2
33,17 €
from 10
30,95 €
from 50
27,63 €
from 100
22,11 €
from 250
19,90 €

plus tax

Request for customised quotation

PayPal payment possible
Ready for dispatch in 24h
Large quantities available immediately

Details

An SmCo pot magnet is a magnetic system made of samarium-cobalt (SmCo). This is a cobalt alloy of the rare earth metal samarium. The magnet is embedded in a steel or stainless steel pot, which strengthens the magnetic force of the magnet and protects it from corrosion. These magnets are characterised by a high temperature resistance, a high coercivity and a high remanence. Due to their high content of cobalt, they are particularly durable and powerful, but also more expensive than magnetic systems with other magnetic materials.

Data sheets & downloads

Specification

Outer diameter: 40 mm
Drilling diameter: 10,5 mm
Colour: silver
Holding force magnet: 42,9 kg
Height: 4 mm
Internal diameter: 5,5 mm
Material: stainless steel, SmCo
Surface: untreated
Temperature resistance to: 350
Temperature resistance from: 350
Pot height: 8 mm
Description: Pot magnet with cylinder bore, made of SmCo, up to 350°C

EAN: 4068243064728
Weight: 0,078 kg / 1 Pieces

Product safety

Safety information & warnings

|Danger: strong magnetic field - may affect pacemakers, medical devices and other electronic devices and credit cards. Keep at distance. |Warning: Risk of crushing - strong magnetic force. Handle with care. Not suitable for children. |Danger: Choking hazard - Magnets can cause life-threatening complications if swallowed. Keep out of reach of babies and children.
