Pot magnet with countersunk borehole, neodymium 40 mm | 58,2 kg | null

Pot magnet with countersunk borehole, neodymium 40 mm | 58,2 kg | null

MSXX000714 4068243063950

/Magnets/Pot magnets/

Item number MSXX000714

Description

Pot magnet with countersunk borehole, magnet made of neodymium, pot made of steel

1.628,80 Kčincl. tax 1.368,75 Kčplus tax

excl. shipping costs

Ready for dispatch

Delivery in 7 working days

Minimum order quantity 5 Pieces

Due to the packaging sizes, this item can only be ordered in the specified units: 5

Pieces

Product seen cheaper
Print Page

Prices
Price per 1 Piece
from 5
325,76 Kč
from 10
279,35 Kč
from 50
232,65 Kč
from 100
186,24 Kč
from 250
167,49 Kč

plus tax

Request for customised quotation

PayPal payment possible
Ready for dispatch in 24h
Large quantities available immediately

Details

Countersinking angle: 90°
Material: steel carcass with neodymium magnet NdFeB
Surface: nickel-plated (Ni)
Colour: silver
Tolerance: +/- 0.1 mm
Style: with spacer

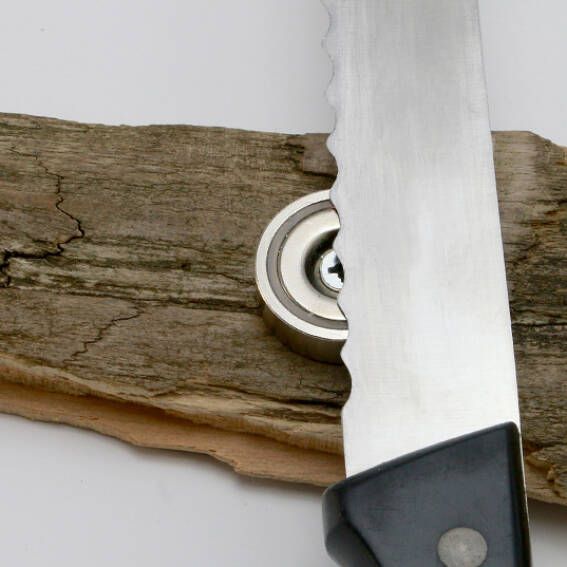

If powerful magnets are to be firmly screwed to the substrate, pot magnets with a bore and counterbore are used. They guarantee an extremely stable and long-lasting fixation, as the small flat magnets are screwed to the wall or ceiling with a suitable countersunk screw. This is where the strong NdFeB magnets demonstrate their immense magnetic force. The protective steel pot prevents the installed magnet from getting dirty or damaged. This increases the service life of the products due to their shape. At the same time, the steel pot shields the magnetic field; the attracting force acts exclusively on the open magnet side. This means that it is used in a reinforced and controlled manner. Because the performance is higher than with conventional magnets, even heavy objects adhere firmly and reliably.

Data sheets & downloads

Specification

Outer diameter: 40 mm
Colour: silber
Holding force magnet: 58,2 kg
Internal diameter: 5,5 mm
Material: Neodym, Stahl
Surface: verzinkt
Countersinking diameter: 10,3 mm
Countersinking angle: 90
Temperature resistance to: 80
Temperature resistance from: 80
Tolerance: +/- 0,1 mm
Pot height: 8 mm
Description: Pot magnet with bore and counterbore, neodymium
Variant: Steel case
Note: Adhesive force at room temperature determined on a 10 mm thick plate in polished steel (S235JR according to DIN 10 025) (1kg~10N).

EAN: 4068243063950
Weight: 0,080 kg / 1 Pieces

Product safety

Safety information & warnings

|Danger: strong magnetic field - may affect pacemakers, medical devices and other electronic devices and credit cards. Keep at distance. |Warning: Risk of crushing - strong magnetic force. Handle with care. Not suitable for children. |Danger: Choking hazard - Magnets can cause life-threatening complications if swallowed. Keep out of reach of babies and children.
