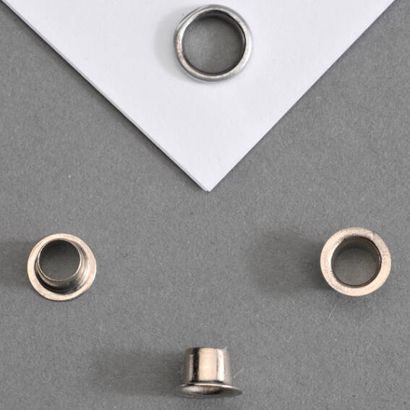

Self-punching metal eyelets are attached to paper or cardboard with the help of eyeletting machines. They serve, among other things, as hole reinforcement for hanging holes, as eyelet binding for binding paper or for making turntables. Eyelets with an inner diameter of 5 mm or more are suitable for reinforcing filing holes or as a secure eyelet binding for direct filing.
When choosing the right eyelet, make sure that the eyelet length is approx. 2 mm longer than the thickness of the block. The paper eyelets are self-punching up to 25 sheets (80g/m²), from 25 sheets we recommend pre-punching the material to be eyed.
Our self-punching metal eyelets are made of high-quality metal and offer a long service life. They are easy to use and can be applied quickly and accurately to achieve a professional result. Whether you wish to bind or join paper, or make turntables, our self-punching metal eyelets are the perfect choice.
Data sheets & downloads
- Description
- eyelets
- Type
- Nr. 24 - 4mm - 2,9mm
- Colour
- silver
- Material
- metal
- Surface
- nickel-plated
- Outer diameter
- 4,5 mm
- Material thickness
- 0,2 mm
- Shaft length
- 2,9 mm
- Overall length
- 3,2 mm
- Internal diameter
- 4 mm
- Head diameter
- 6,5 mm
- Shaft diameter
- 4,5 mm
- EAN
- 4068243036053
- Weight
- 0,084 kg / 1.000 Pieces
Safety information & warnings
- Caution: contains nickel - may cause allergic reactions.
- Warning: Choking hazard - small parts. Keep out of the reach of babies and children.
Manufacturer
SPRINTIS Schenk GmbH & Co. KG
Ludwig-Weis-Straße 11
D-97082 Würzburg
[email protected]
